Gemma 4: 20× lower vision latency under load from one fix

In this post, we share a simple fix that cuts Gemma 4’s p95 time to first token on video requests by about 20× under load while preserving bit identity (no change in predictions).

Most inference engines (e.g., vLLM, SGLang) are designed primarily for text workloads and optimized for high throughput. On latency-sensitive video workloads, their default deployments do not perform well.

Setup

For this post, we use vLLM as our inference framework. We deploy the model as follows:

vllm serve google/gemma-4-E4B-it \
    --no-enable-prefix-caching \
    --mm-processor-cache-gb 0 \
    --async-scheduling \
    --limit-mm-per-prompt '{"audio": 0}'

Note that we turn off prefix caching and multimodal processor cache so identical requests don’t hit the cache and distort our measurements during benchmarking. We also turn off audio, which this benchmark does not use.

Benchmark

To benchmark model performance, we use guidellm to run a sweep of constant request rates from 1 to 20 requests per second. For each rate, we measure tail TTFT and median ITL, the two metrics we found most telling for latency-sensitive workloads.

The graph below shows the latency-throughput profile of Gemma 4 on two types of requests with similar input and output sizes.

1. Text-only requests: these requests contain ~500 text input tokens and 10 output tokens
2. Video requests: these requests contain 6 frames at 480p in the input. This translates to roughly 500 tokens (comparable with the text-only requests).

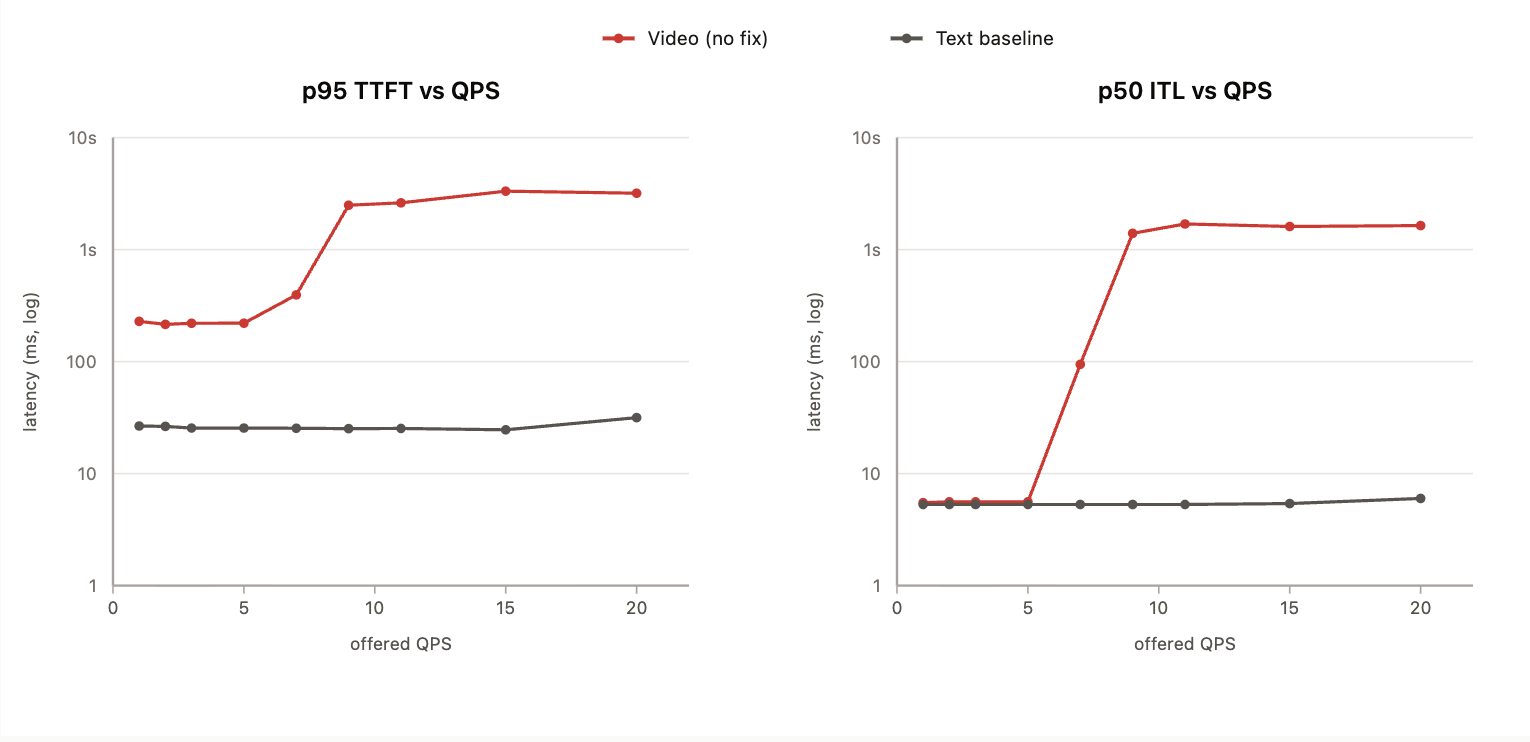

google/gemma-4-E4B-it on vLLM, guidellm sweep at constant rates from 1 to 20 requests per second. Text requests: about 500 input tokens and 10 output tokens. Video requests: 6 frames at 480p, about 500 tokens.

Note that the y-axis for both graphs is log-scaled, so the differences are a lot larger than they seem.

For a single request, we see that p95 TTFT for a video request is 10× (25 ms vs. 225 ms) that of a text-only request with the same input size (500 input tokens). This tells us that the vision encoder adds roughly 200 ms. As QPS grows, tail latency grows slowly and then shoots up around 5 QPS to 2+ seconds, while the text baseline remains around 25 ms (100×).

We see a similar pattern in ITL. Median ITL is similar between text and video requests until we hit 5 QPS, after which it explodes to ~2 s. Meanwhile, the text baseline stays consistent around ~5 ms.

Our goal in this post is twofold:

• reduce the discrepancy between text and video requests for a single request
• maximize the QPS while keeping the p95 total request latency ≤ 300ms

Continuous batching

The fix lives inside the vision encoder. But before digging in there, let’s understand the scheduling loop of vLLM.

For the sake of simplicity, let’s assume we have only one request. This request (text or video) produces 10 output tokens over 10 iterations inside vLLM, one output token at a time. The first iteration is what inference engineers call a prefill. The other nine iterations are called “decode”. They have different names because they have different compute and memory profiles, so the engine treats them differently. Prefill is compute-heavy. It processes the full input prompt, builds the KV cache and emits the first token. Decode is compute-light. It processes the last token by pulling the entire KV cache (hence memory bandwidth) and emits one token.

If we have multiple concurrent inference requests, some of them might be in the prefill stage (new requests) and others in the decode stage. In each iteration, vLLM packs the in-flight prefills and decodes together and runs them in a single forward pass. We call this continuous batching.

A vision prefill costs far more than a text prefill

Now, here’s the catch. If any of the prefills in a single iteration contains an image or video in the input, the whole iteration will have to wait for the image and video to go through the vision encoder first. Then, once we get the vision tokens, the forward pass will occur.

This implies that if the vision encoder is not well optimized for big batches, it will slow every other request. And that’s exactly what happens. We can infer this overhead from the graph above to be ~200 ms (TTFT video at QPS = 1 minus TTFT text-only at QPS = 1). This means that if a video prefill lands in an iteration, every decode in that iteration takes over 200 ms instead of 5 ms.

And the crazy thing is that this scales linearly with the number of prefills with images/videos in an iteration. Yes, linearly. Let’s look at the following examples of iterations:

• 5 decodes: 5 ms
• 1 prefill text-only and 4 decodes: 25 ms
• 1 prefill video-only and 4 decodes: 225 ms
• 2 prefills video-only and 4 decodes: 550 ms
• 8 prefills video-only and 4 decodes: 1,700 ms

What happened to GPUs being designed for embarrassingly parallel workloads?

Not that parallel after all

When a batch of prefills reaches the vision encoder, you would expect it to process them in parallel. It does not. It processes them serially, one at a time. Not one video at a time, literally one frame at a time.

The code snippet below is from the video encoder path. The outer loop walks the videos in the batch of prefills that contain image / video. The inner loop walks the frames in each video. Every frame gets its own blocking forward pass through the vision tower.

for pv_chunk, pp_chunk in zip(pv_per_video, pp_per_video):
    frame_embs = []
    for i in range(pv_chunk.shape[0]):
        pv = pv_chunk[i].unsqueeze(0)
        pp = pp_chunk[i].unsqueeze(0)

        max_patches = pv.shape[1]
        output_length = max_patches // pooling_k2

        vt_output = vt(pv, pp, output_length=output_length)
        frame_emb = self.embed_vision(
            inputs_embeds=vt_output.last_hidden_state.unsqueeze(0).to(target_dtype)
        ).squeeze(0)
        frame_embs.append(frame_emb)

    per_video_embeddings.append(torch.cat(frame_embs, dim=0))

Batching the frames

The simplest version stacks every frame in the batch and runs the vision tower once. Each frame is independent of the others, so the math is the same whether they are processed serially or together.

Not so fast, though. This loop exists for a reason. A batch of prefills might have images and videos of different resolutions, aspect ratios and token budgets. As a result, they need to be padded accordingly, and the encoder has to keep track of the token budget for each request.

After implementing the above, we noticed a slight drift at the bit level; that is, the outputs of the vision encoder differed slightly (~1.7%). Upon further investigation, we’re happy to announce that we couldn’t figure out exactly why. We found that the drift happened at the pooling layer inside the vision encoder, but it was unclear why. So we resorted to running the pooler sequentially while batching the other parts of the vision encoder.

Results

As expected, batching improves performance significantly in several ways:

1. It reduces the TTFT gap between text and video for a single request from 200 ms to 80 ms.
2. p95 TTFT stays around 120 ms up to 15 QPS and under 200 ms at 20 QPS, instead of about 3 s, roughly a 20× improvement.
3. ITL stays flat at 5 ms up to 10 QPS instead of 2 s (400× improvement).

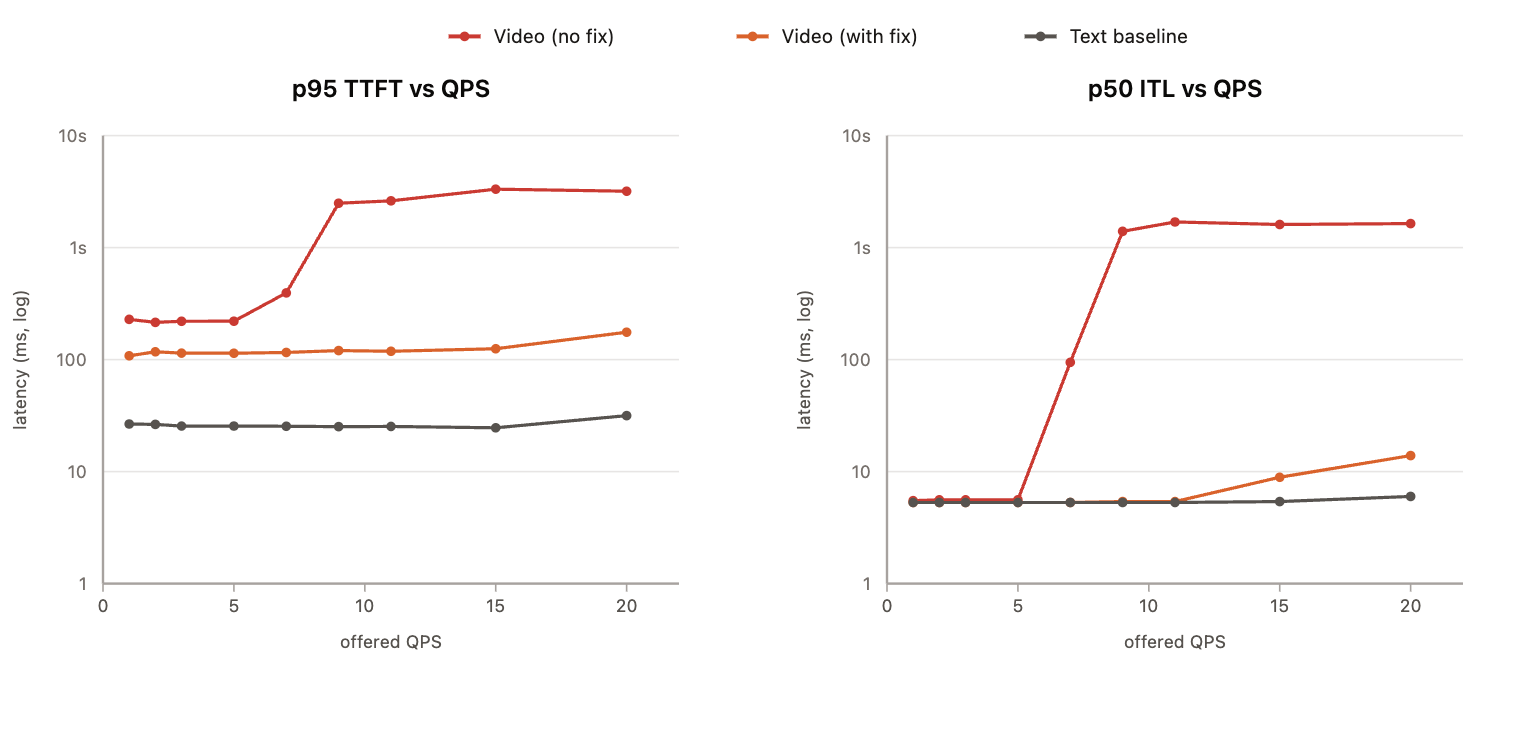

Same deployment and sweep as Fig. 1, with the batched vision encoder.
